Please download our door height variation list in Specification Download to order from our drop down menu.
Note, product is handed, see Technical Details in Specification Download for handing options.

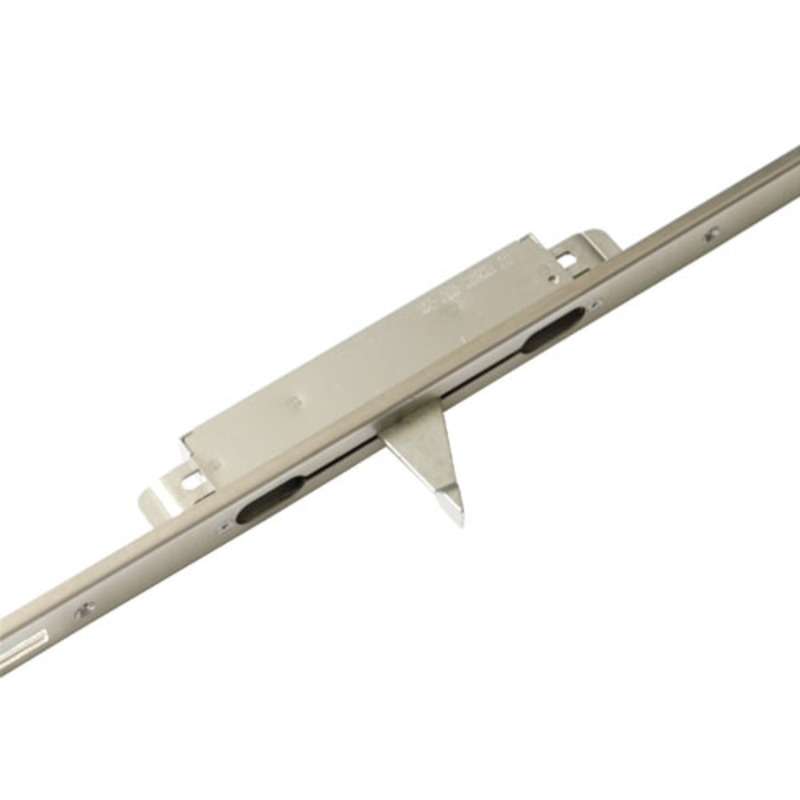

The Cyclone offers the most user friendly and secure French Door espag system to date.
A minimum height of 1895mm and maximum of 2820mm can be achieved with a 5 point locking on master and 2 point locking on slave.
All locking points are fully adjustable. There is a deadbolt function within the slavebolt making the user aware the slave lock is not thrown.
The Cyclone French Door system makes for easy fitting, cutting down on labour costs, fully adjustable on all locking points removing remedial issues.
- Designed to meet PAS24 requirements when tested on appropriate frames from an approved UCAS test house.
- 10 Year Guarantee
For a Standard Kit for up to 2m doors you will need:
1 x TDK CH45 Master Lock
2 x TDK CMSB Master Lock Shootbolt
1 x TDK CSRH or TDK CSLH - Right or Left handed Slave Lock
1 x TDK CSSB Slave Lock Shootbolt
2 x TDK KSST Shootbolt Striker
1 x TDK CCP Shootbolt Cover Plate Connector
Other options available:
- TDK CH45/TALL Master Lock for doors of 2095mm - 2280mm
- TDK CH45/EXTALL Master Lock for doors of 2405mm - 2600mm
- TDK CSRH or LH /TALL Slave Lock for 2095mm - 2280mm
- TDK CSRH or LH /EXTALL Slave Lock for 2405mm - 2600mm
- TDK 554088 245mm Slave Extension
- TDK 633957 200mm Master Extension
Don't forget cylinders and handles, please go to our handles and cylinder pages for all the options
Cyclone Double Door GearSTOCK CODE: TDKCH45
